豪华款拉线电动幕/雅致Elegant系列

分享
微信
新浪微博
QQ
QQ空间
豆瓣网
百度贴吧
幕布材质 白塑幕/玻纤幕/透声幕/软白幕/长焦黑晶抗光幕/定制
增益 1.0-3.0
视角 120°-180°
幕布颜色 前白后黑/前白后白等(依据幕布变化)
推荐搭配投影机 中长焦投影机
环保与保养 可用毛巾擦洗外壳

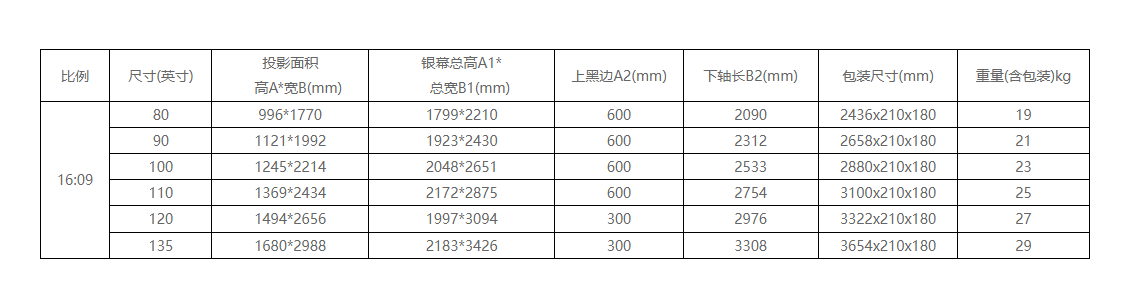

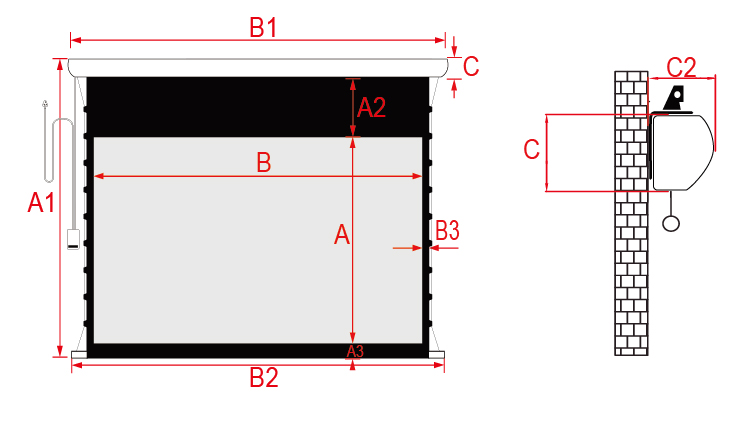

产品详情尺寸规格产品实拍幕料介绍产品安装

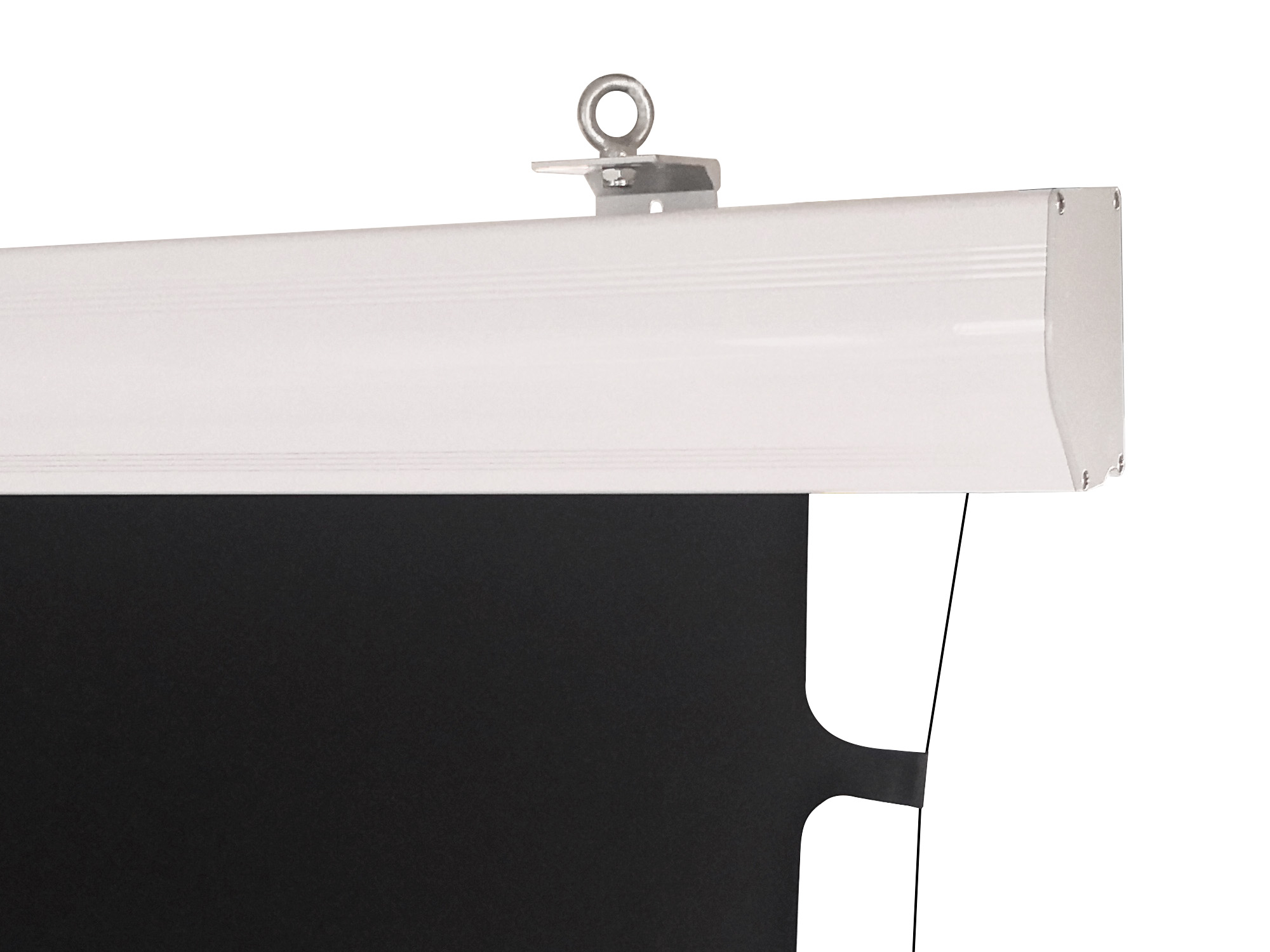

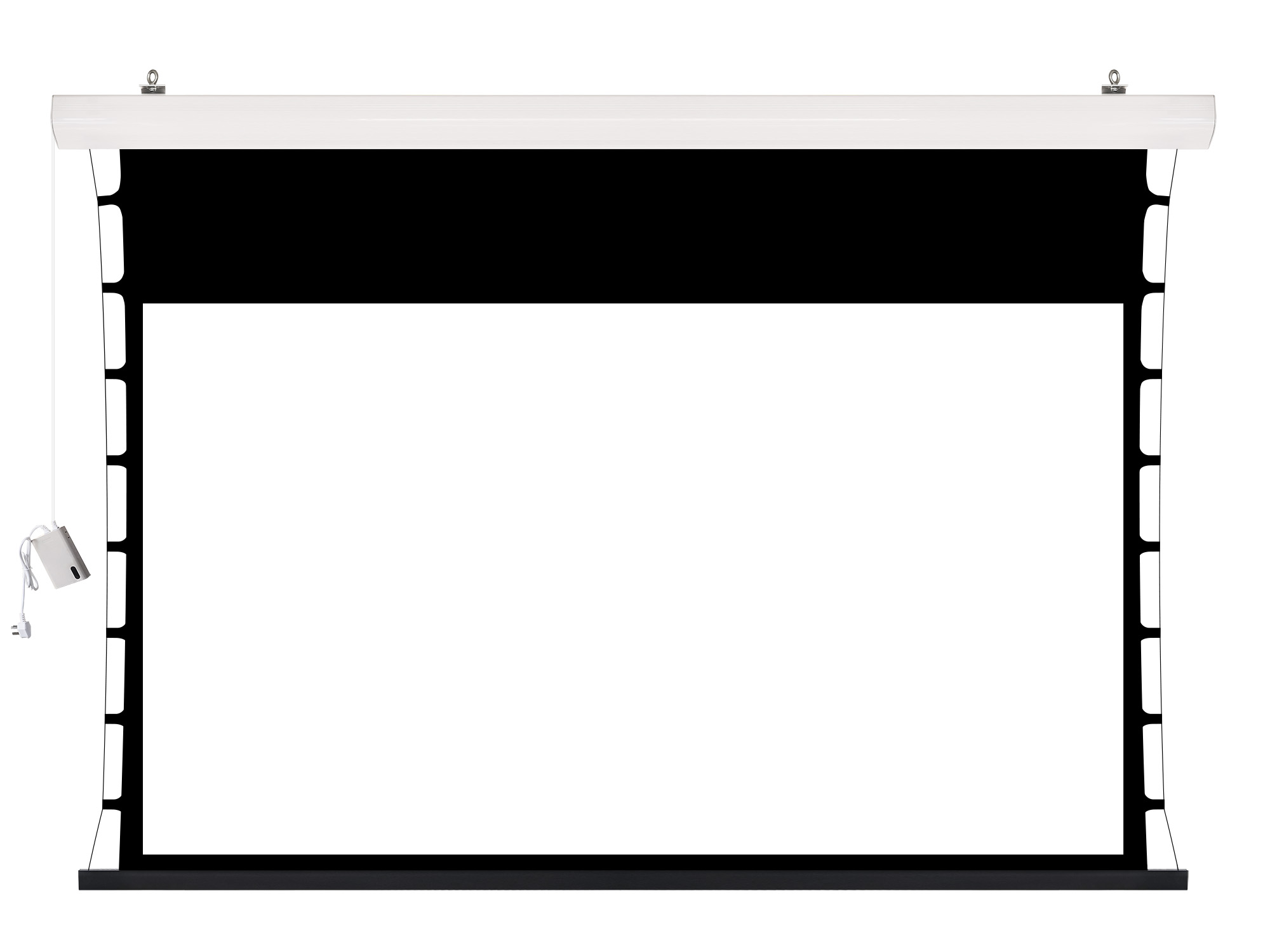

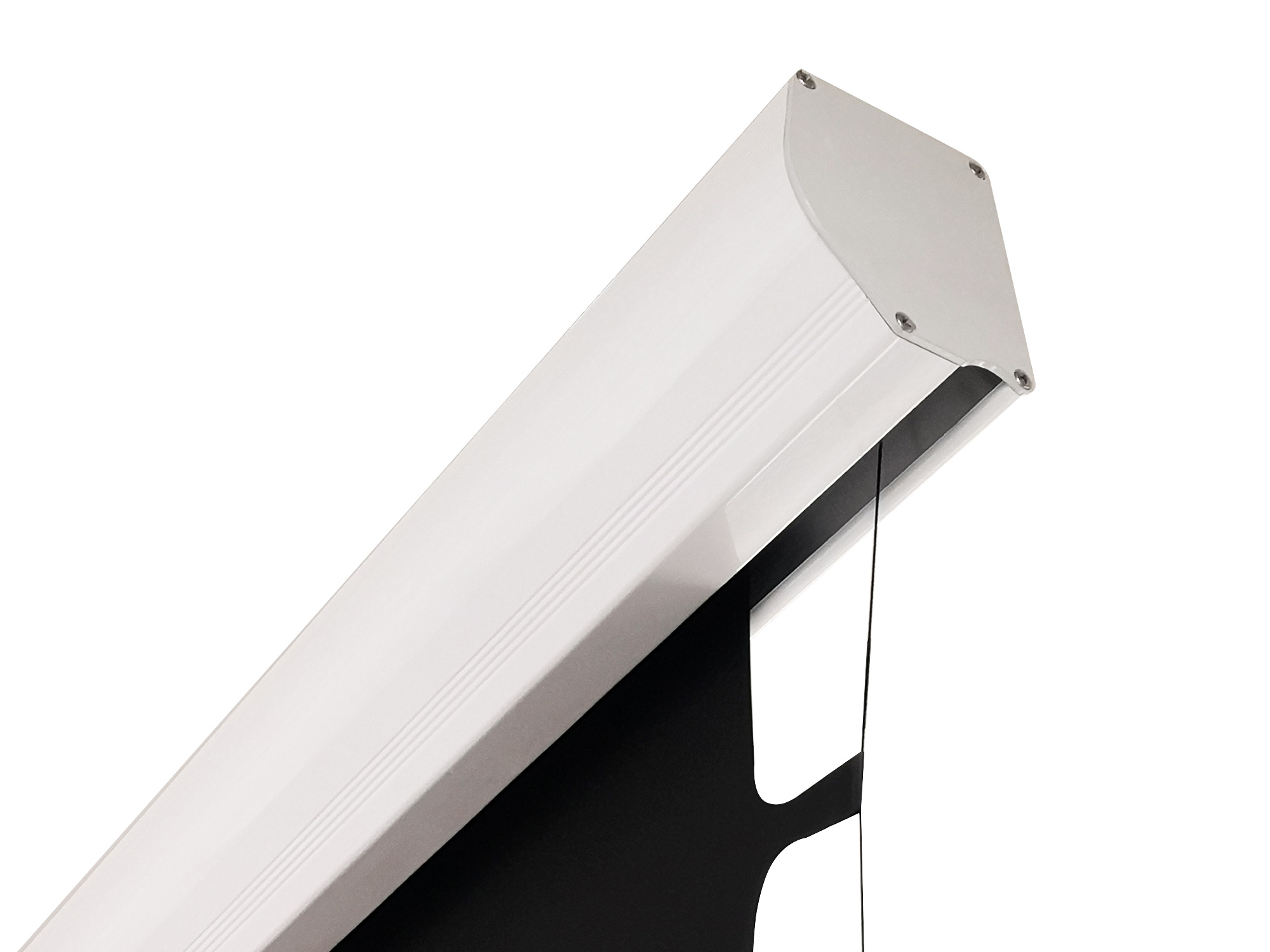

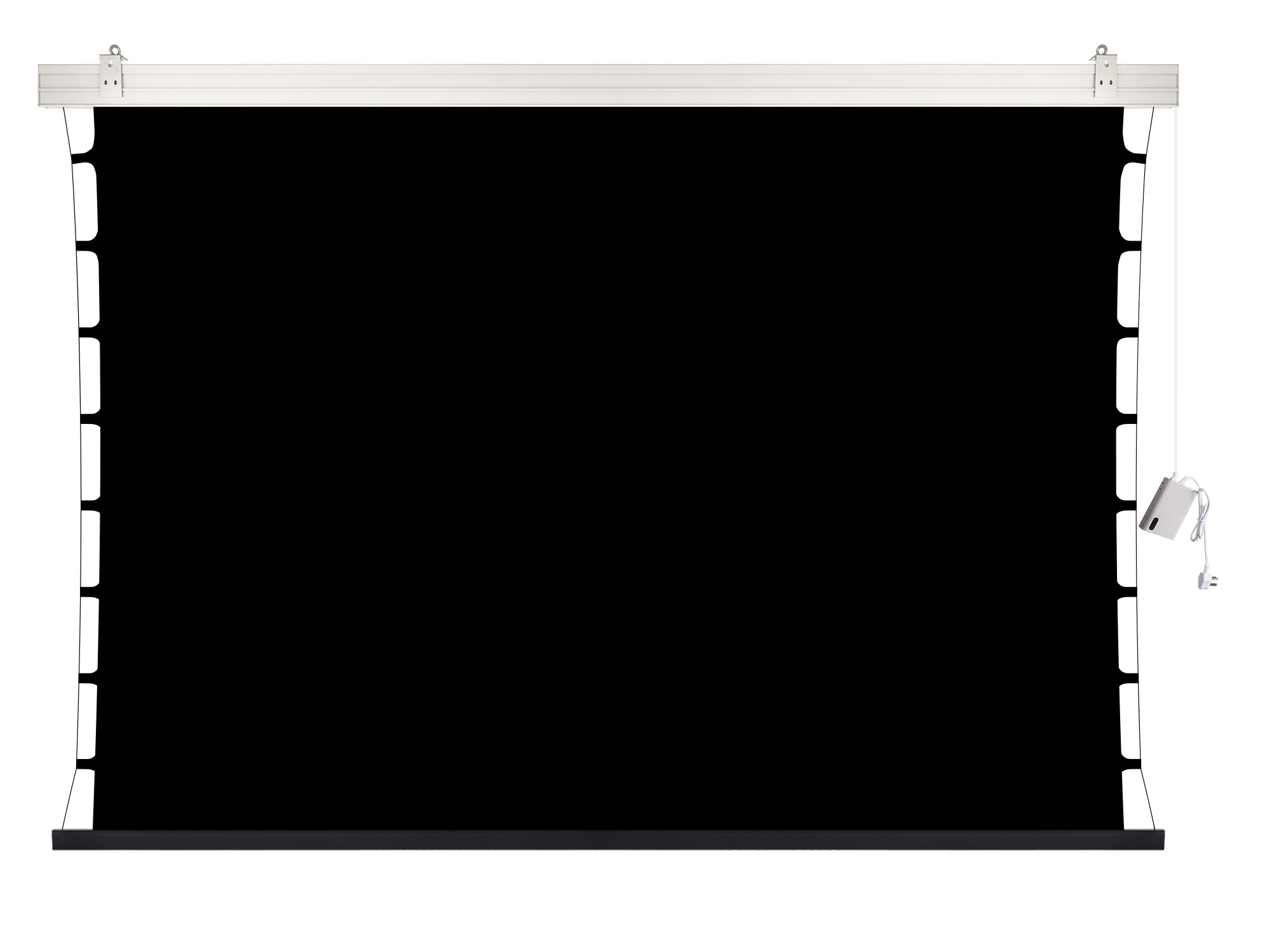

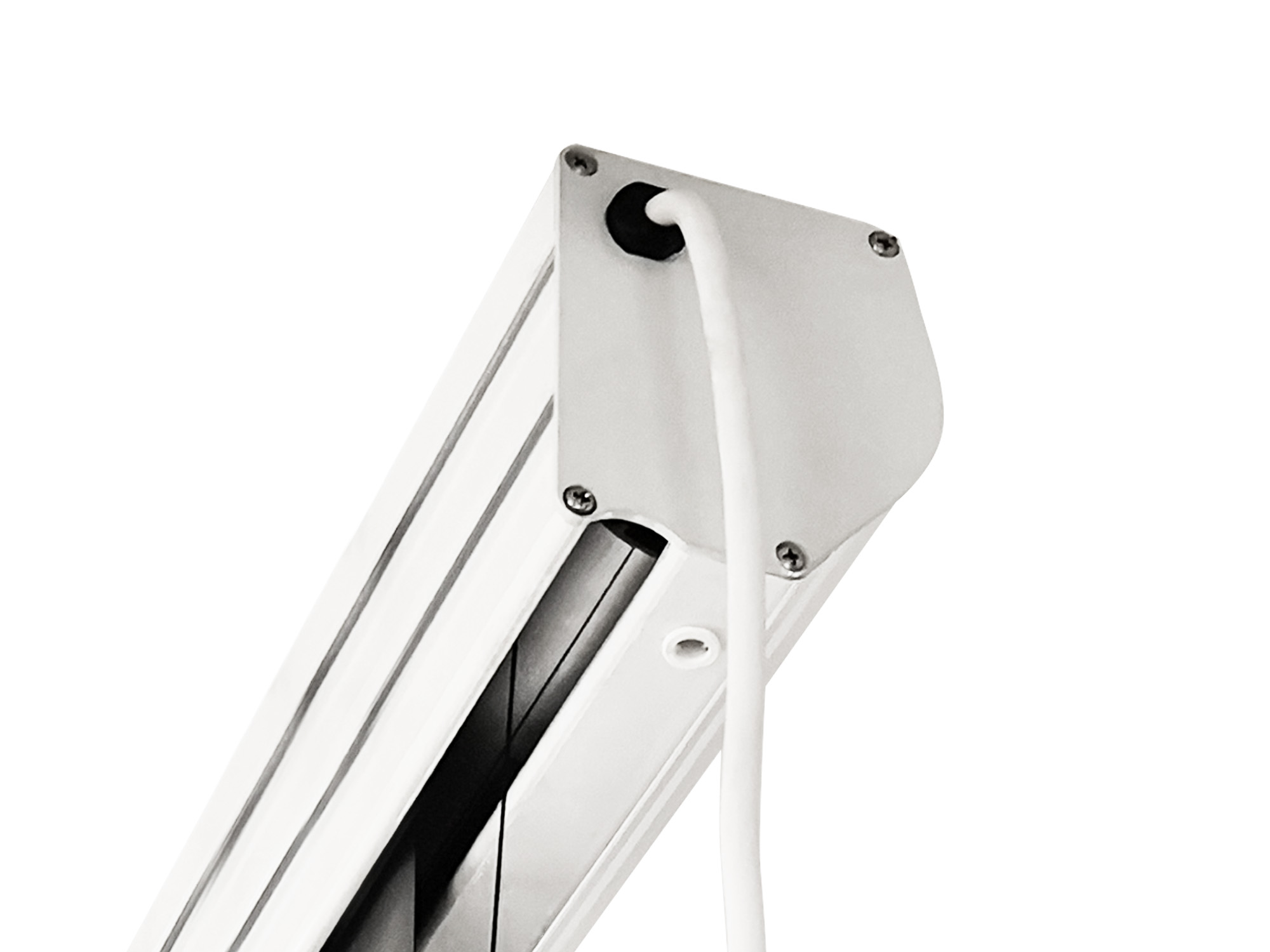

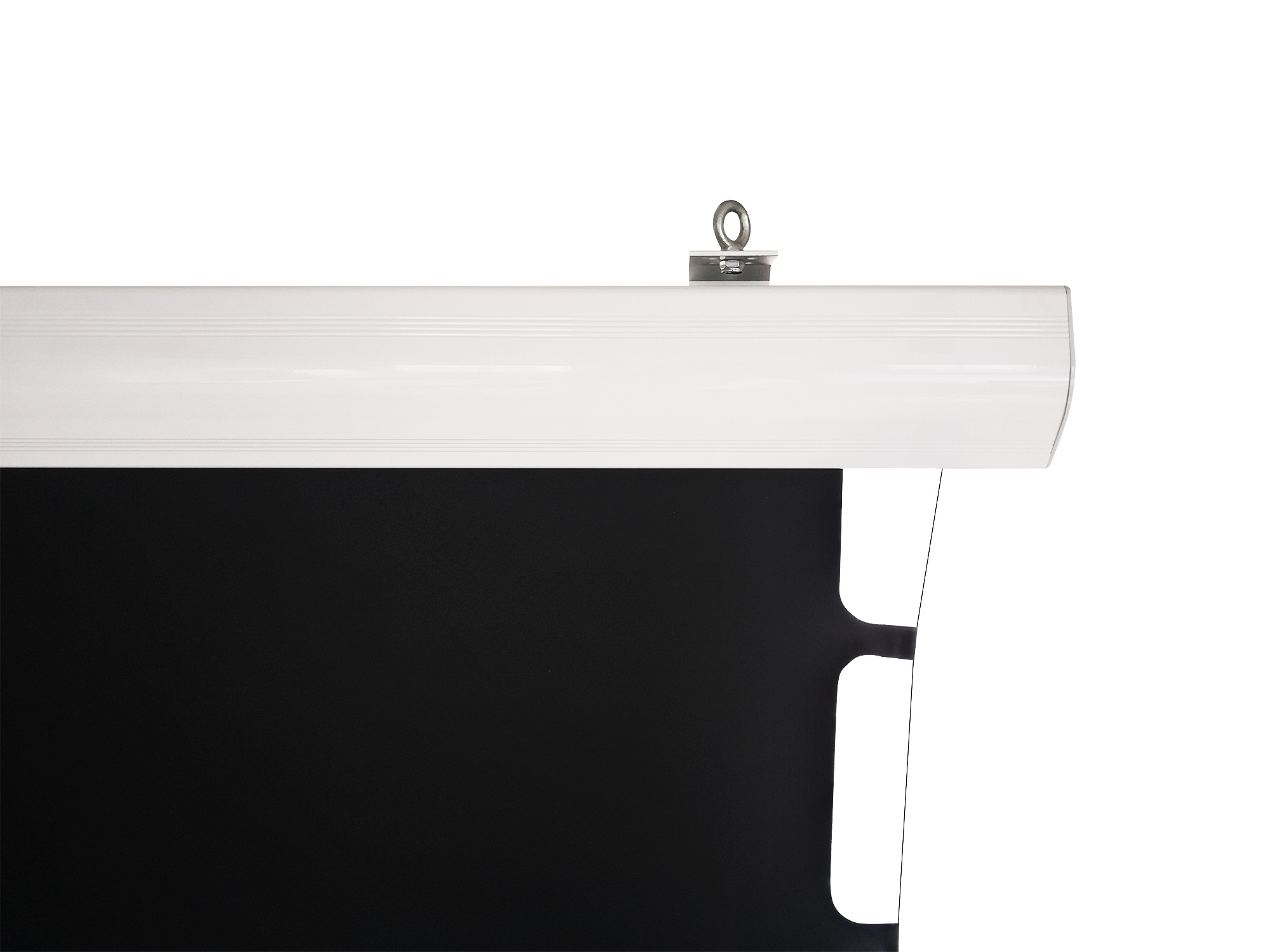

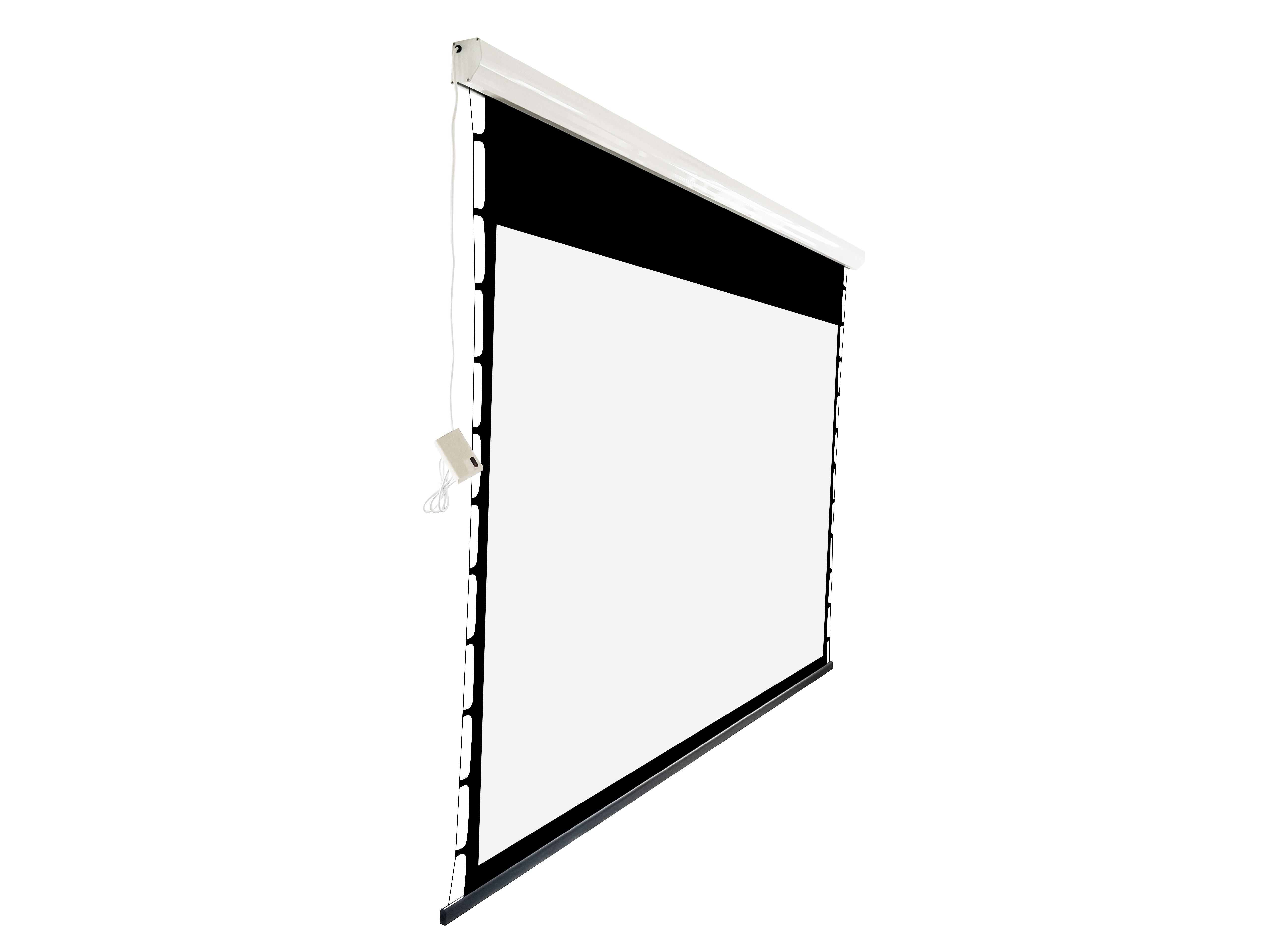

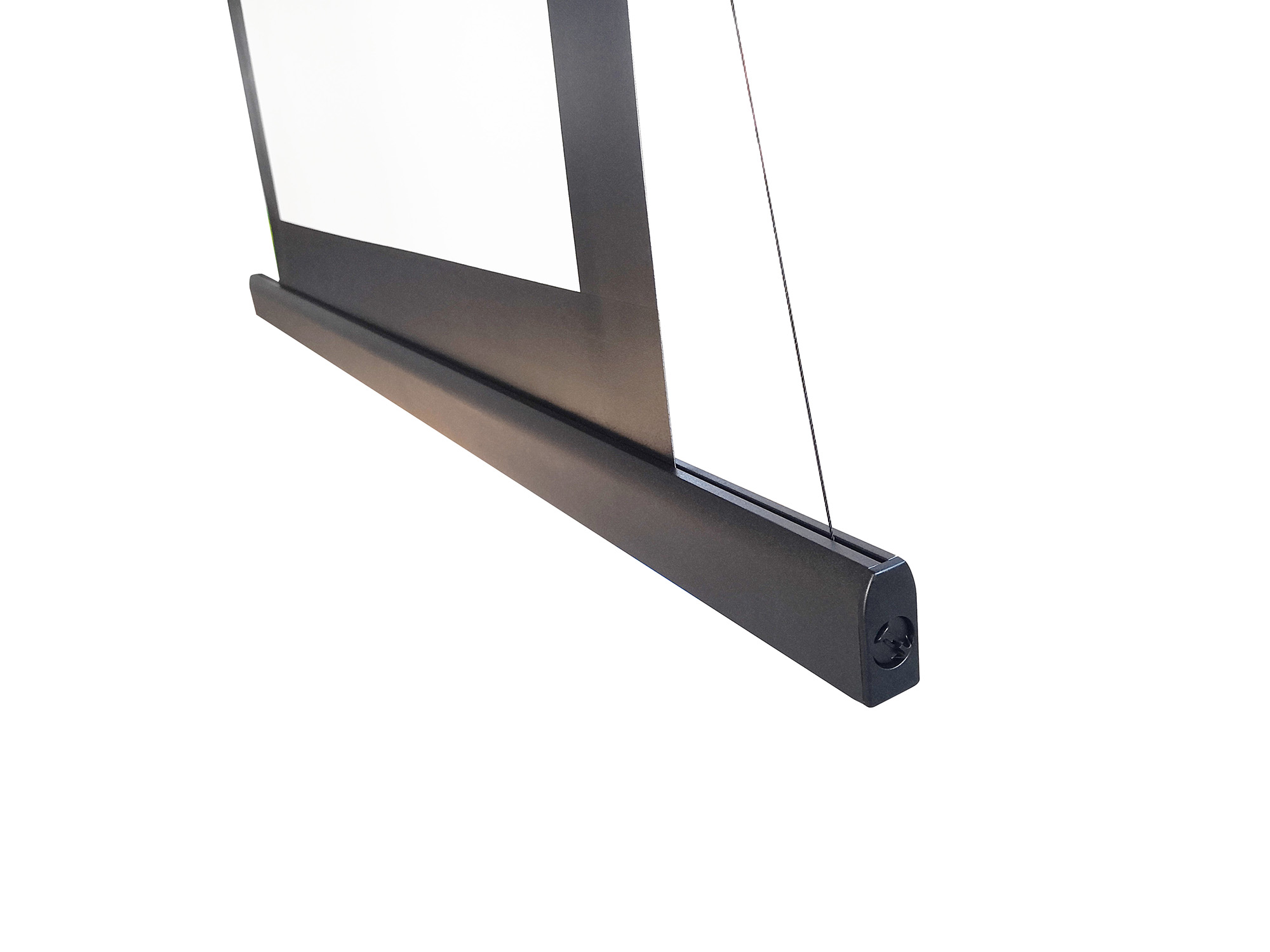

雅致Elegant系列是一款美观、坚固耐用、质量上乘的拉线电动投影幕,采用两边拉线设计,张力均匀,使幕面平整。流线形铝合金外壳,珍珠白钢琴烤漆,更美观,最新设计,更符合新生代审美标准。配备RF无线遥控、线控控制的方式。幕料可供多种选择,并且幕布下轴采用加重加厚铝合金,可调节线松紧的拉线调节器,让幕布长久保持平整,可长久使用。



该产品可选幕料:黑晶抗光幕、高增益白幕、雪白幕、银灰幕、金属幕、透声幕、背投幕等。

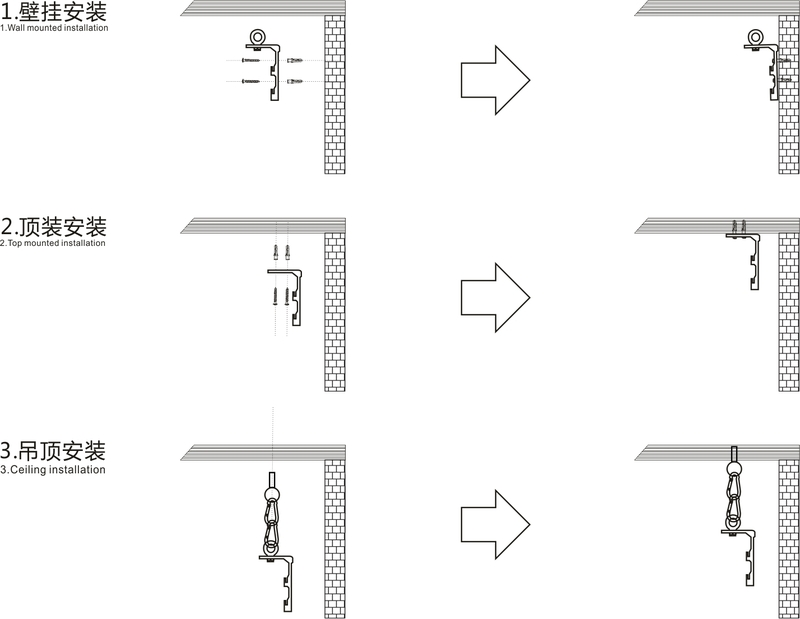

(根据安装现场选择安装方式)

(Selection of Installation Method Based on Installation Site)


第一步:测量电动幕尺寸(2组孔中间距离大约罩壳总宽的1/2左右),选择合适的高度,用笔在墙上做好两组打孔标识(建议用水平尺使两组孔保持在同一水平线上),然后打孔,在进行安装。

Step 1: Measure the size of the electric curtain (the middle distance between the two groups of holes is about 1/2 of the total width of the cover), select the appropriate height, mark the two groups of holes on the wall with a pen (it is suggested that the two groups of holes should be kept on the same horizontal line with a horizontal ruler), then drill holes and install them.

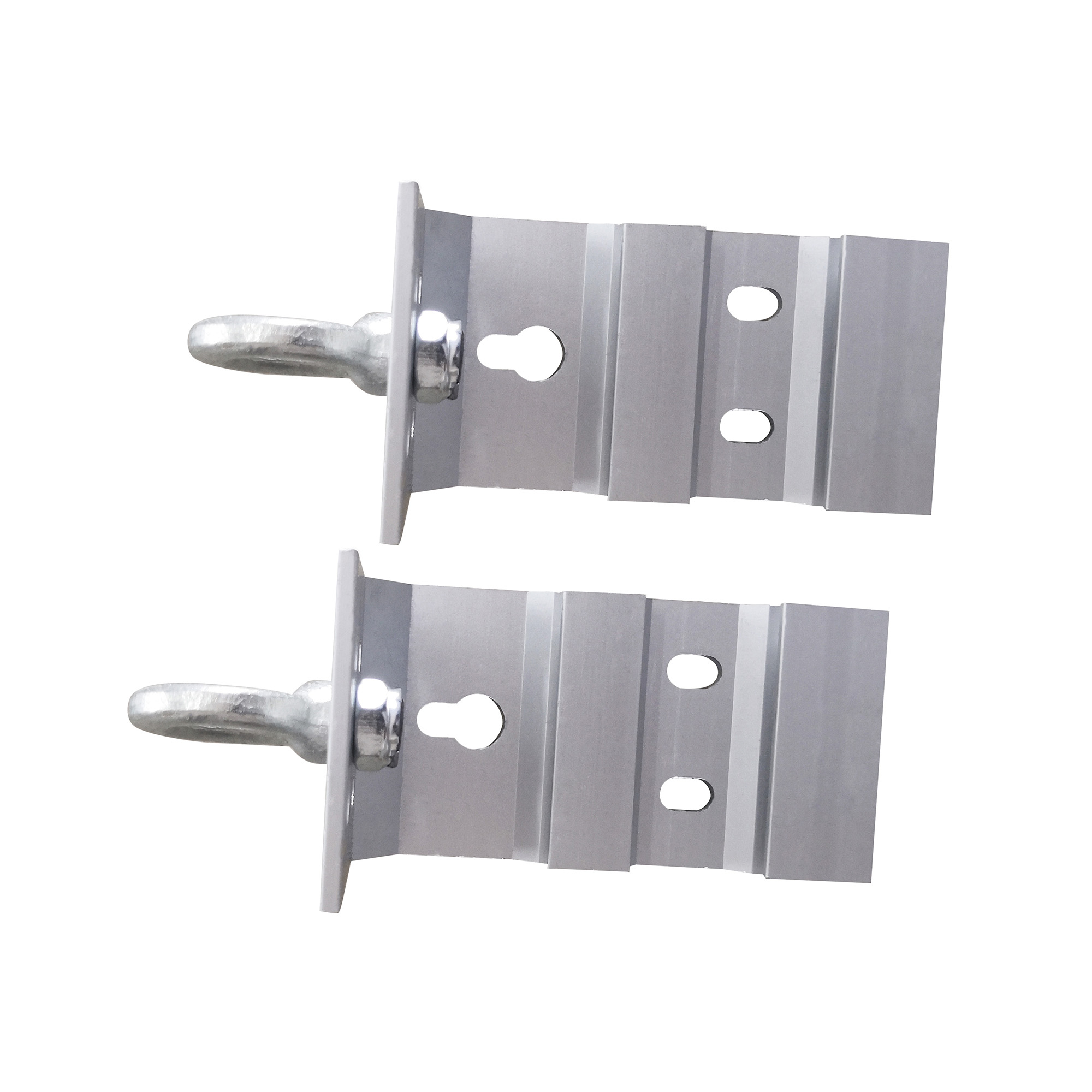

第二步:两个人将银幕抬起紧靠装好的挂件,然后缓慢往下移动,直到银幕与挂架卡槽卡住,安装即可完成。

Step 2: Two people lift the screen close to the mounted pendant, then move slowly down until the screen and the hanging rack chute are stuck, and the installation can be completed.
